MIL-R-22827E
a. Each lifting pin and its attachment to the container shall be
designed to withstand a pull of not less than 7,500 pounds (lb) applied as a
shearing action at right angles to the hub. The lifting pins shall be
suitably positioned on each end of the container in order to provide proper
balance and operation for hoisting and dumping under all normal operating
conditions.
b. Each bail bar or bail assembly and its attachments to the container
shall be designed to withstand a pull of mot less than 9,000 lb without
failure or permanent distortion of the bail assembly or the container. The
bail bars shall be designed and positioned to permit ready engagement and safe
operation utilizing the automatic dumping hooks on the hoist-haul mechanisms
specified.
3.4.1 Limiting dimensions. The width (outside to outside of end walls) or
main or lower section for all containers shall be 84 inches ±1/2 inch, and be
compatible for use with the hoist-haul mechanisms specified. In addition, the
refuse containers shall conform to the requirements and dimensions shown in
table I.

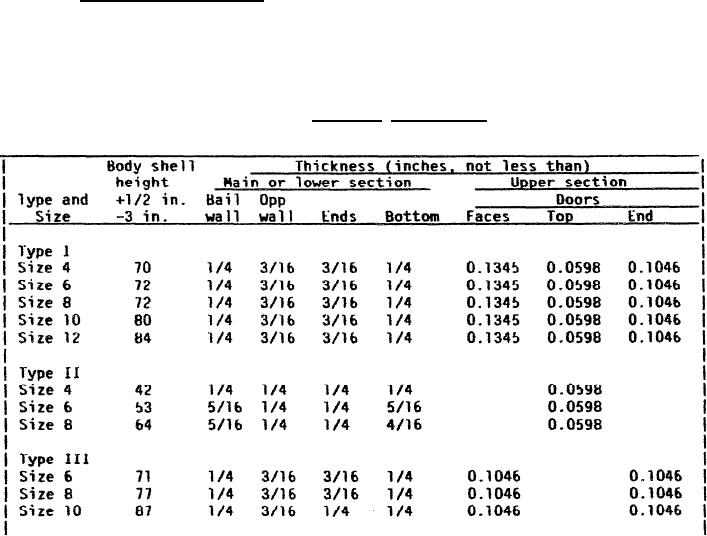

TABLE I.
Limiting dimensions.
5
